The revolutionary new Digital Imaging oil particle analysis and counting technique give unprecedented insight into the type and quantity of contamination in any given oil or diesel fuel sample. ISO/NAS/SAE counts as well as a broader micron range, shape recognition, bubble elimination and the ability to handle higher viscosities.

This breakthrough technology uses advanced algorithms to calculate the size and shape of particulate on images taken at between 2 & 4 frames/second. The technology also gives root cause shape recognition to the particulate in live systems or bottle samples of any oil. Special algorithms and AI analysis images on the fly with a resolution of 2 microns up to several hundred microns.  High-resolution images are saved for further analysis and reporting such as the one above.

Particles are counted and categorized into Fatigue, Sliding or Cutting Wear. Air Bubbles and Water Droplets are counted and then eliminated from the counts making this suitable for live testing or permanent installation on systems where the air is present such as large gearboxes.  In addition, anti-foaming additives such as polydimethylsiloxane are not counted as particles by digital imaging, this is a major advantage over Laser Particle counters which see the micelle-like formations created by this additive as contamination, these are phantom particles, often resulting in particle counts being raised by 2 to 3 ISO codes, especially the 4 and 6-micron channels.

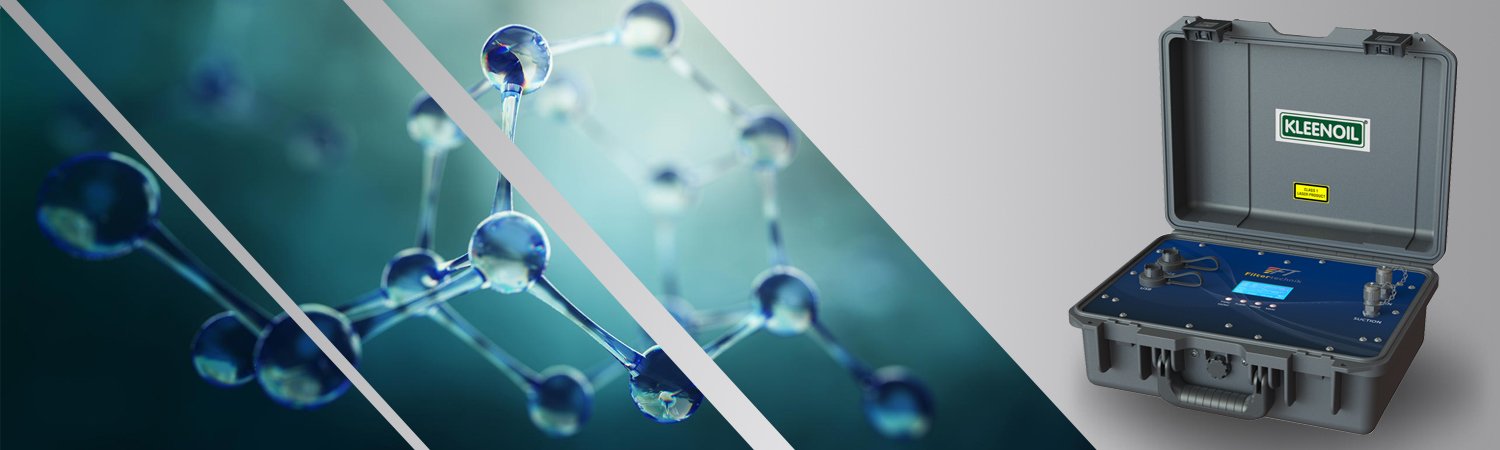

Filtertechnik supplies the S120 counter as a stand-alone particle counter for integration into live systems for 24/7 monitoring. Alternatively, we have developed a range of portable oil analysis cases designed to give on-the-spot oil analysis and a deep understanding of the type and quantity of contamination in any given oil sample. Built-in software takes readings from the new digital imaging technology and presents Engineers with an easy-to-understand analysis including images of contamination in the oil sample.

  • Live ISO – 4406, NAS – 1638 and SAE – AS4059 results can be displayed
  • Compact, unit with robust casing
  • Self-contained with integral pump
  • Sample direct from oil reservoir or live system up to 350Bar
  • Accurate, repeatable and consistent results
  • The ideal survey tool for field and laboratory use
FS9V2 FS9V2-HP FS9V2-RH FS9V2-RH-HP FS9V2-PPM FS9V2 -PPM -DEN
Particle Counting for oil and diesel. Particle Counting for oil includes high pressure reducing valve for connection to a high pressure system (max 350 bar) Particle Counting for oil with water sensor (%RH). Particle Counting for oil with water sensor (%RH) includes high pressure reducing valve for connection to a high pressure system (max 350 bar). Particle Counting for diesel with a water sensor displaying PPM Particle Counting for diesel with a water sensor displaying PPM and density sensor (kg/l).
