KLEENOIL BYPASS FILTRATION ON-SITU OFFLINE DEMONSTRATION

  • Company Name: HICOM-Teck See Manufacturing Malaysia Sdn Bhd
  • Location: SHAH ALAM, SELANGOR
  • Product Installed: MFS-2XSDU/9788 + MM5/KM.
  • Eclipse Product Installed: BLOW MOULDING MACHINE DA-90G FB43023 NO: 15
  • Industry: Automotive
  • Process Type: BLOW MOULDING MACHINE

PURPOSE:

  • To evaluate the effectiveness of KLEENOIL depth filter in improving the cleanliness level of hydraulic oil of blow moulding machine during on-situ offline filtration.

KLEENOIL HYDRAULIC OIL FILTRATION SYSTEM:

  • With 2 filter units, magnetic filter and particle counter
  • Model: MFS-2XSDU/9788 + MM5/KM.
  • Flow rate: 600 litres per hour
  • Suitable for tank size: up to 4000 litres
  • Dimension: 700 mm L x 600 mm W x 1100 mm H

BLOW MOULDING MACHINE DA-90G FB43023 NO: 15

  • Oil Name: PETRONAS Hydraulic 46
  • Oil reservoir capacity: 500 litres
  • Oil operating hours: 4 years

DEMONSTRATION DETAILS & RESULTS:

  • Dates carried out : 20th – 22nd December 2022
  • Hose connections: suction hose and delivery hose to machine reservoir containing the oil to be filtered.
  • Test duration: ~ 48 hours
  • NAS 1638 cleanliness reading (Before filtration): 11
  • NAS 1638 cleanliness reading (After filtration: 5
  • Bulk oil temperature (Before filtration):  42.7°C
  • Bulk oil temperature (After filtration):  41.4°C
  • Measured oil viscosity after filtration: ~ 45 mm2/s
  • Appearance changes: From murky brown to clear lighter amber

COMMENTS:

  • After a mere 48 hours of filtration, the cleanliness level of the 4 years oil hydraulic oil improved vastly from initial NAS 1638 level 11 to level 5. (Please refer to attached Guide-to-Contamination- Standards.pdf for definition and explanations).
  • At NAS 1638 Level 5, Kleenoil filtered hydraulic oil is cleaner than new hydraulic oil!
  • At NAS 1638 Level 5, Kleenoil filtered hydraulic oil fulfils the stringent requirements of servo valves and high pressure longlife systems

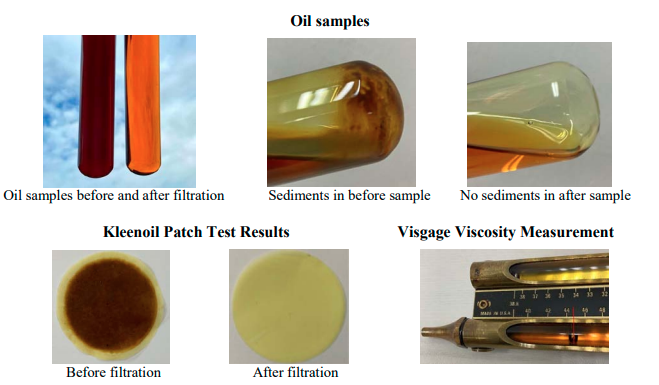

  • Oil appearance also changed from brown to clear lighter amber. No sediment found in the filtered oil sample, a clear evidence that harmful contaminants have been removed.
  • Amazingly, the bulk oil temperature dropped from 42.7°C to 41.4°C, a drop of 1.3°C.
  • The Kleenoil Patch Tests carried out on the pre-filtered and after-filtered oil samples show a vast difference in appearance from dark brown patch to light yellow patch indicating the filtration has removed all the particulates that can be seen by naked eyes. This is a proof of the efficiency of the Kleenoil Depth Filtration System.
  • The removal of particulates from the hydraulic oil means that the particulates that used to wear off the hydraulic components are no longer there or fewer of them as shown in the illustration. This translate to lesser wear, longer lifespan of hydraulic component. With lesser wear and tear, lesser heat generated that accounts for the drop in bulk oil temperature!
  • With the filtered hydraulic oil becoming “better than new” conditions, oil change interval can be extended.

Each Kleenoil cartridge holds 3 kg of particulates, that’s a lot of dirt and debris from hydraulic oil. Certainly the two used cartridges can be used for other machines, making usage of Kleenoil a very cost effective investment!

PHOTOGRAPH DOCUMENTATION

Model: MFS-2XSDU/9788 + MM5/KM.
Kleenoil Depth Filter working principle
